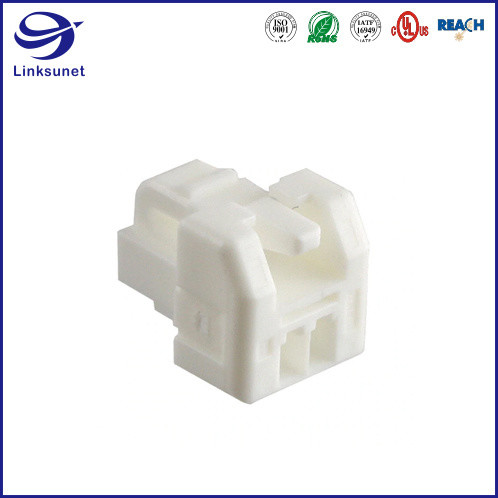

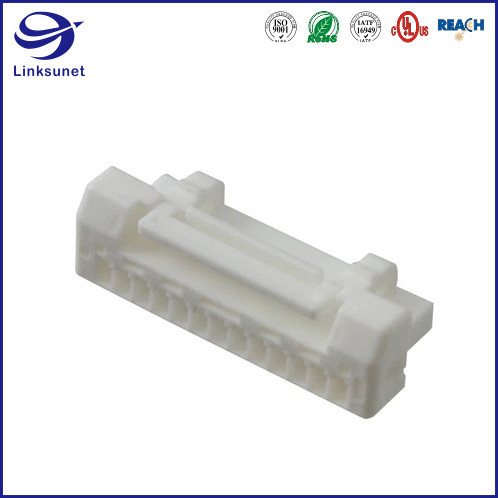

CLIK Mate 502380 Latch Lock 1.25mm Molex Cable Connectors for Telematics
Product Description
Molex CLIK-Mate Wire-to-Board Connectors
Molex CLIK-Mate Wire-to-Board Connectors are ideal for applications that require high pin
count connectors to carry more signal lines in less space; the system includes a unique
tuning-fork terminal concept that provides low-insertion force and secure mating contact.
The Molex SMT CLIK-Mate Connectors are available in 1.25mm, 1.50mm, and 2mm pitch
sizes and feature a positive internal latch, dual latch for high pin counts, and a dual row for
1.50mm pitch. New! Molex CLIK-Mate 1.50mm Pitch W2B Connectors are now available in
single- and dual-row options, SMT and through-hole versions, and circuit sizes from 2-24.
The system also includes a bottom-entry PCB receptacle for applications that require a
through-board mating configuration. Vertical and right angle dual row 1.50mm W2B Connectors
are also available.
| CLIK Mate 502380 Latch Lock 1.25mm Molex Cable Connectors for Telematics |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Molex |
| Series | CLIK-Mate 502380 |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Plug |
| Contact Type | Non-Gendered |
| Number of Positions | 2 - 24 |
| Pitch | 0.049" (1.25mm) |
| Number of Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Color | Natural |
| Note | Contacts Not Included |
| Base Part Number | 502380 |
Documents & Media
| Datasheets | 502380-zzzz |
| Mfg CAD Models | 502380-1400.stp |
| Environmental Information | 5023801400 RoHS Cert of Compliance |
| Featured Product | CLIK-Mate Wire-to-Board Connectors |
| Core Micro Products |
| 3D Drawings | 502380-1400.pdf |
| Product Training Modules | CLIK-Mate™ 1.50 mm Tuning Fork Design Wire-to-Board Connectors |
 |  |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. We are must charge
the sample expense, when under you order form, we return the sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
